Ultima AC/DC 800 (High Traffic)

$990.00 incl GST

SKU: DACE-ULT-ACDC-KIT Category:

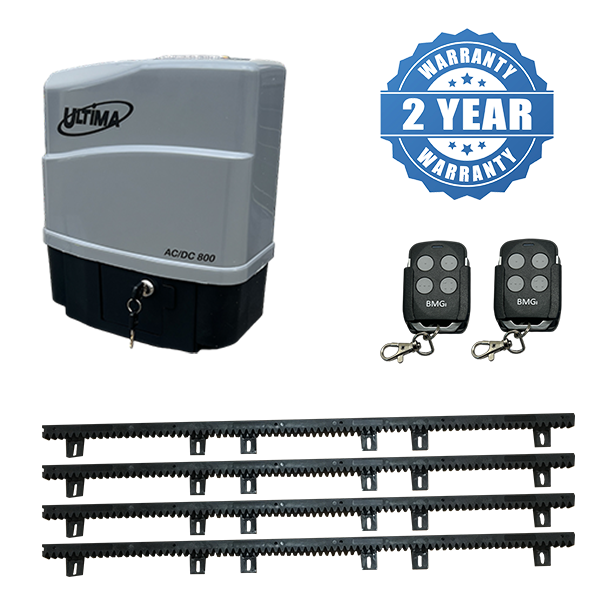

Kit Inclusions
  • Motor with Base Plate
  • 4mtrs Nylon Racking
  • 2 x Remotes
  • 2 x Release Keys
  • Inbuilt high current toroidal transformer

DACE Ultima AC/DC 800

The DACE Ultima AC/DC 800 motor is a new design following on from the RT and HT series for residential & light commercial properties and suits gates up to 20mtrs long. With state of the art technology and a strong, rugged construction it will stand up to the most extreme conditions.

The DACE Ultima AC/DC 800 features pedestrian mode, auto close, adjustable speed and many other exciting features. This kit is therefore the perfect solution as long as you have a direct powerpoint at the gate for a plug and play system using the inbuilt high current toroidal transformer.

Kit Inclusions
  • Motor with Base Plate
  • 2 x Remotes
  • 2 x Release keys
  • 4mtrs nylon racking
  • Inbuilt high current toroidal transformer
  • Navigate Menu Via Joystick
  • Multiple Security Functions
  • Quick Nav Screen for Easy Selection
  • Program up to 1024 Remotes
  • Large Graphics Display
  • On-Board Help Screens
  • Time Manager Controls up to 840 Events
  • 15 Channel On-Board Code Hoping Receiver
  • Ultra Energy Efficient
  • Voice Prompts to Simplify Installation
  • 8 Inputs and 5 Outputs
  • Optional backup battery
ultima steel gear
Steel Internal Gear

To suit BMGi’s standards, we have engineered the Ultima’s internal gear with a steel internal design as well as our steel internal drive gear. This ensures the slide motor has a higher life expectancy and allows our units to be more shock tolerant when an unexpected obstruction is sensed.

Specifications
  • Max gate length: 20mtrs
  • Max running speed: 30m/min
  • Max gate mass: 800kgs
  • Max startup force: 32kgs
  • Max running force: 22kgs
  • Cycles per day: 1500
Dimensions
DACE Ultima AC/DC 800
slide gate motor
DACE Ultima AC/DC 800
automatic gate
DACE Ultima ACDC 800 Automatic Gate
GATE WEIGHT – RUNNING FORCE – PULL FORCE
How to check that your gate is suitable for the
Ultima AC/DC 800 slide gate motor
 Gate Specifications
Maximum Gate Mass800kg
Maximum Startup Force32kg
Maximum Running Force22kg
Checking Startup Force & Running Force

The driveway gate startup and running forces should be measured before purchasing or installing any gate opener. Should the measured forces exceed those in the table above for the Ultima units, then the motor must not be installed. It may be possible to reduce these forces by carrying out maintenance on the gate rail but if not, then the motor must not be installed.

These forces can be measured using a fishing or luggage scale (see figure above).

Startup Force:

Place the gate in the fully open/closed position and pull on the scale until the gate starts moving. The value showing on the scale at the point that the gate starts moving is the Startup kgf. This should be checked in both directions.

Running Force:

This is the maximum value read while the gate is moving before coming to the fully open position.

Checking the Effective Gate weight if on a Gradient

Gradient = A (0.3m) / B (4m)

Effective Gate Weight
When is a 200kg gate really 800kgs – Working out the effective gate weight

Effective Gate Weight = 40 x gradient + 1 x actual gate weight
Eg. A driveway, that falls 300mm over 4m (.300/4 = .075 gradient) has an effective weight of 800kgs
Effective Gate Weight = 40 x .075 + 1 x 200
Therefore, the example above wouldn’t suit either of these motors

Other Examples:

80kg actual gate weight – Fall 100mm over 4m = 160kg effective gate weight

80kg actual gate weight – Fall 200mm over 5m = 208kg effective gate weight

150kg actual gate weight – Fall 350mm over 6m = 266kg effective gate weight
